SAP2904
DUAL OPERATIONAL AMPLIFIERS

The SAP2904 devices which include two high-voltage op amps. These devices provide outstanding value for cost sensitive applications, with features including low offset, common-mode input range to ground, and high differential input voltage capability.

The SAP2904 op amps simplify circuit design with enhanced features such as unity-gain stability, lower offset voltage, and lower quiescent current. High ESD and integrated EMI and RF filters enable the devices to be used in the most rugged, environmentally challenging applications.


Main feature

Wide Single?Supply Range: 3V~32V

Low Supply-Current Drain, 0.7mA Typ

Common-mode input voltage range includes ground

Low Input Bias and Offset Parameters

Differential Input Voltage Range Equal to Maximum-Rated Supply Voltage 32V

Open-Loop Differential Voltage Amplification: 100V/mV

Internal Frequency Compensation

ESD rating (HBM): ±2kV

ESD rating (CDM): ±1kV


Ordering Information
Product Name Package form Marking Hazardous Substance Control Packing Type Remarks
SAP2904SA SOP-8-225-1.27 SAP2904 Halogen free Tube
SAP2904SATR SOP-8-225-1.27 SAP2904 Halogen free Tape&Reel

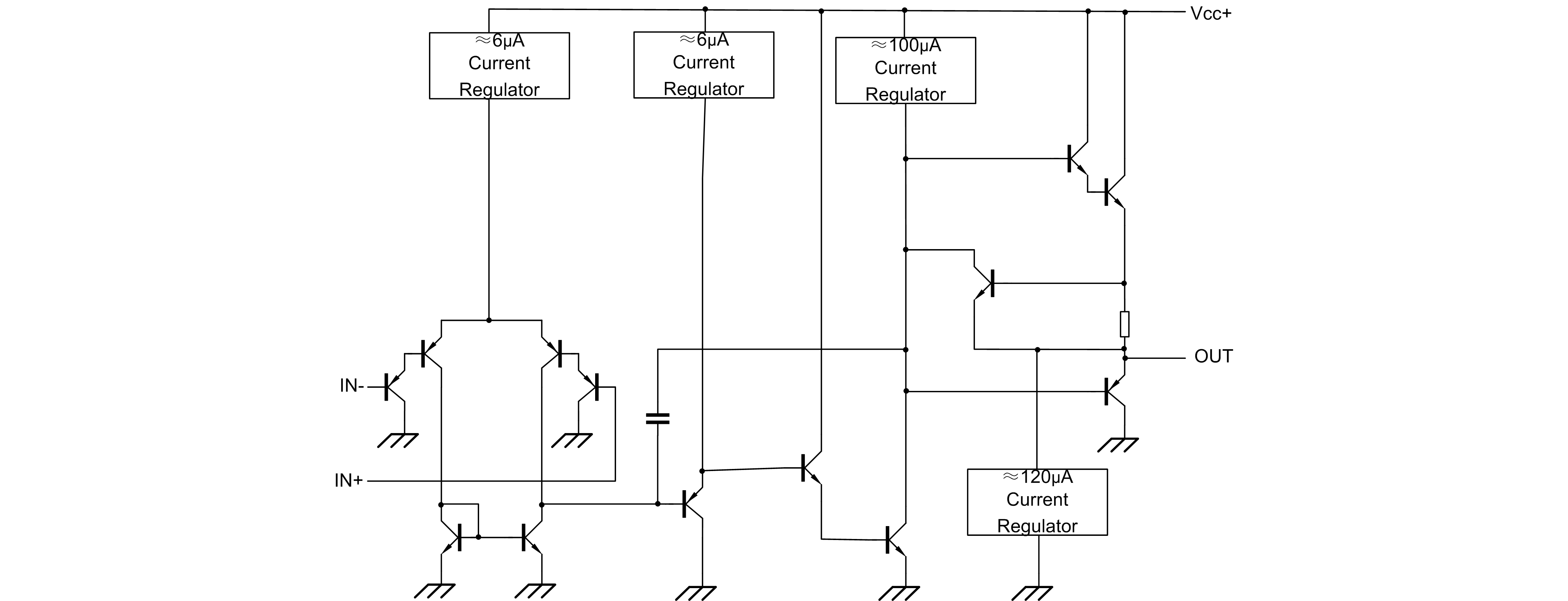

Block Diagram


Documents
title Types of Size (KB) date Download the latest English version
SAP2904 0 1970-01-01 SAP2904 Datasheet
